Hologram Gallery

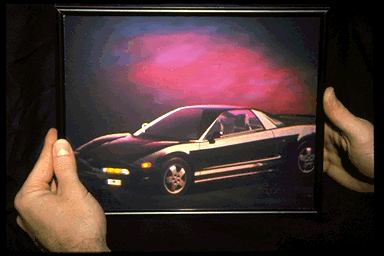

This 10x8 inch two-step full color reflection holographic s
tereogram of an Acura NSX was made using a single laser
wavelength (647 nm), and a single high-resolution photographic
plate. Color was produced using the "In-Situ" color control
technique developed by Spatial Imaging alum Julie Parker.
Data courtesy of Alias Research and Honda R&D Company.

This is an Edge-Illuminated hologram. This example is
approximate 10x4 inches, and is mounted on a 1.5 inch
thick lead crystal plinth. Illumination is provided by 3
high intensity Hewlett-Packard LEDs. This image was
produced for the Lemelson-MIT Prize, an annual award
for invention and innovation.

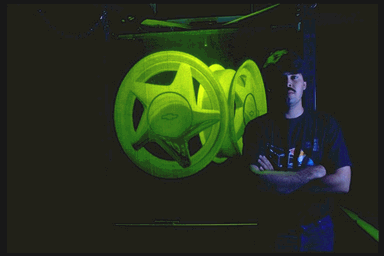

Here is a large-scale one-step holographic stereogram.
The film measures 1 x 1 meters, and the image volume
occupies approximately 1 meter of depth. This hologram
was produced in conjuction with research done for
General Motors Corporation in 1991. It is composed of
1000 separate exposures, and displays a 45 degree
viewing angle.
